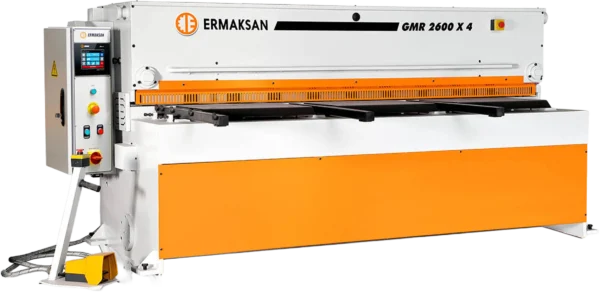

ERMAKSAN GMR mechanical guillotine shears are specially designed for thin sheet metal materials, working very efficiently at high speeds and offering the best shearing performance in their class. ADVANTAGES – Low investment cost. – High efficiency. – Ergonomic design. – Energy saving. – Quiet operation. – Does not require large floor space. – Different color options. – Durable choice for your precise cutting jobs. – Easy installation and training. GENERAL FEATURES – High cutting quality can be achieved at high speeds, with a space-saving body. – Suitable throat depth of 4mm GMR for continuous strip cutting (standard throat depth 100mm). – GMR 4mm; bearing between graphite bushings, – GMR 3mm; upper jaw moves on rails between – High power transmission and torsional resistance, balanced shaft assembly. – GMR 4mm has a gap that is easy to adjust manually with one hand – Mechanically. Clamping system that prevents the sheet from slipping during cutting – GMR 3mm, 600mm, GMR 4mm 800mm stroke machines and 0.1 mm precision stop system – Quiet operation, easy maintenance, fast and motor unit + gearbox as standard. Front safety plate for CE standard. – Wide arms and side miter for cutting wider sheet metal – Electrical system tested by SIEMENS – ERCUT-5 multifunction, parametric adjustable, and programmable controller. – Sheet metal sliding unit for removing cut material
ERMAKSAN GMR mechanical guillotine shears are specially designed for thin sheet metal materials, working very efficiently at high speeds and offering the best shearing performance in their class. ADVANTAGES – Low investment cost. – High efficiency. – Ergonomic design. – Energy saving. – Quiet operation. – Does not require large floor space. – Different color options. – Durable choice for your precise cutting jobs. – Easy installation and training. GENERAL FEATURES – High cutting quality can be achieved at high speeds, with a space-saving body. – Suitable throat depth of 4mm GMR for continuous strip cutting (standard throat depth 100mm). – GMR 4mm; bearing between graphite bushings, – GMR 3mm; upper jaw moves on rails between – High power transmission and torsional resistance, balanced shaft assembly. – GMR 4mm has a gap that is easy to adjust manually with one hand – Mechanically. Clamping system that prevents the sheet from slipping during cutting – GMR 3mm, 600mm, GMR 4mm 800mm stroke machines and 0.1 mm precision stop system – Quiet operation, easy maintenance, fast and motor unit + gearbox as standard. Front safety plate for CE standard. – Wide arms and side miter for cutting wider sheet metal – Electrical system tested by SIEMENS – ERCUT-5 multifunction, parametric adjustable, and programmable controller. – Sheet metal sliding unit for removing cut material
Soluciones integrales en maquinaria CNC para la industria metalmecánica:
venta, instalación, automatización y servicio técnico especializado en todo Colombia.
En WAREN COL SAS acompañamos a su empresa desde la asesoría técnica pre-venta hasta el soporte durante toda la vida útil de sus equipos.
Somos representantes exclusivos de ERMAKSAN y expertos en tecnología CNC y CN para metal laminado.
